Mono Block Full Bore Ball Valves
Valves materials are listed below;
Body : Carbon Steel ASTM A 105 or Cr-Ni 304 1.4301 - Cr-Ni 316 1.4401.
Cover : Carbon Steel ASTM A 105 or Cr-Ni 304 1.4301 - Cr-Ni 316 1.4401.
Ball : Cr-Ni 304 1.4301 / Cr-Ni 316 1.4401.
Working Pressure : PN 16 – 40 / Class 150 – Class 300
Working Temperature : -40 °C / +200 °C
Dimension : DN15 – DN250
Usage Areas : LPG, CO2, Fuel-Oil, Pressurized Air and Other Gases.
Valves Design : ASME B 16.34 / EN 12516-1 / PED 2014/68/EU
Connection : ASME B 16.5 / DIN EN 1092-1
Fire-Safe : API 6FA / API 607 / ISO 10497
Flanged type Full Bore Ball Valve
Valves materials are listed below;
Body : Carbon Steel A216 WCB or Cr-Ni 304 1.4301 - Cr-Ni 316 1.4401.
Cover : Carbon Steel A216 WCB or Cr-Ni 304 1.4301 - Cr-Ni 316 1.4401.
Ball : Cr-Ni 304 1.4301 / Cr-Ni 316 1.4401.
Working Pressure : PN 16 – 40 / Class 150 – Class 300
Working Temperature -30 °C / +200 °C
Dimension : DN15 – DN250
Usage Areas : LPG, CO2, Fuel-Oil, Pressurized Air and Other Gases.
Valves Design : ASME B 16.34 / EN 12516-1 / PED 2014/68/EU
Connection : ASME B 16.5 / DIN EN 1092-1
Fire-Safe : API 6FA / API 607 / ISO 10497
The Welded and Threaded Two-Way Manual Ball Valve is a robust industrial valve designed for manual operation and efficient flow control in pipelines. Featuring a welded construction, this valve is known for its durability and resistance to leaks, making it suitable for various applications in industries such as oil and gas, petrochemicals, and water treatment. The manual operation allows for precise control over fluid flow in two directions, providing flexibility in system configurations. With its welded body and reliable sealing mechanisms, the valve ensures secure and maintenance-free operation over extended periods. It is ideal for applications where reliability, durability, and ease of operation are critical considerations.

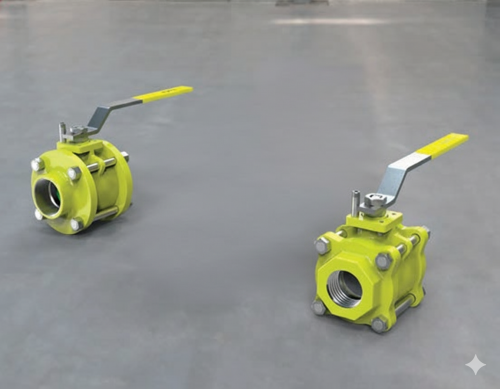

Threaded or Socked Welded type Full Bore Ball Valves
Valves materials are listed below;
Body : Carbon Steel A216 WCB or Cr-Ni 304 1.4301 - Cr-Ni 316 1.4401.
Cover : Carbon Steel A216 WCB or Cr-Ni 304 1.4301 - Cr-Ni 316 1.4401.
Ball : Cr-Ni 304 1.4301 / Cr-Ni 316 1.4401.
Working Pressure : PN 16 – 40 / Class 150 – Class 300
Working Temperature -30 °C / +180 °C
Dimension : DN15 / R ½” – DN100 / R 4”
Usage Areas : LPG, CO2, Fuel-Oil, Pressurized Air and Other Gases.
Valves Design : ASME B 16.34 / EN 12516-1 / PED 2014/68/EU
Connection : BSP or NPT threaded / Socket Weld.
Fire-Safe : API 6FA / API 607 / ISO 10497.
