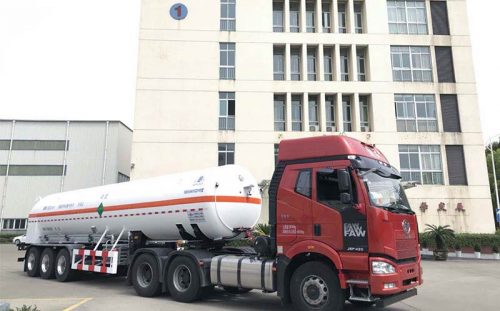

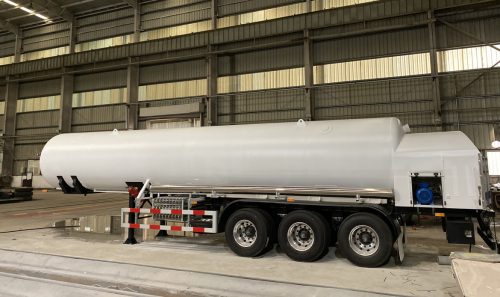

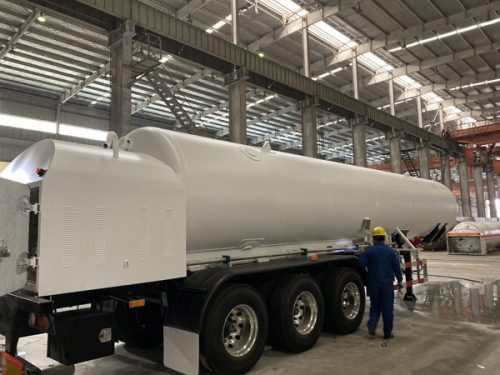

CO2 Transportation Tank
Polyurethane Insulated CO2 Semi-Trailer Technical Parameters
|
CAPACITY |
FROM 22M3 TO 28M3 |
|
|
UN NUMBER |
UN 2187 |
|
|
DESIGN CODE |
EN14398 + TPED (2010/35/EU) + ADR |
|
|
DESIGN PRESSURE |
ACC. TO DESIGN CODE / 22-24-25 BAR (STANDARD) |
|
|
INSULATION |
POLYURETHANE INSULATION ACC. TO CUSTOMER SPECS. SUCH AS 150MM. – 200MM. + VAPOUR BARRIER (OPTIONAL) |
|
|
INNER VESSEL |
CARBON STEEL (EN10028-3) P460NL1/P460NL2 |
|
|
CLADDING |
ALUMINIUM CLADDING (STANDARD) STAINLESS STEEL (OPTIONAL) |
|
|
PIPING MATERIAL |
STAINLESS STEEL (304-304L) |
|
|
TANK TYPE |
SEMI-TRAILER |
|
|
DESIGN TEMPERATURE |
-40 °C +50 °C |
|
|
NON-DESTRUCTIVE TEST |
ACC. TO DESIGN CODE (RT-UT-PT-MT) |
|
|
TANK DIAMETER |
FROM 1.700MM. TO 2.100MM. |
|
|
CORROSION PROTECTION |
SAND BLASTING AND COATING ACC. TO EN 12944 C5-H |
|
|
AXLE SUPPLIER |
BPW-SAF-JOST-LOCAL |
|
|
1ST AXLE WITH AUTOMATIC LIFTING SYSTEM |
STANDARD |
|
|
BRAKING SYSTEM |
DISC – DRUM BRAKE |
|
|
SUSPENSION |
AIR – MECHANIC |
|
|
TANK ACCESSORIES |
SAFETY RELIEF VALVE, LEVEL GAUGE, MANOMETER, LOADING-UNLOADING-GAS EQUALISING VALVES, PUMP, METERING UNIT. |
|
