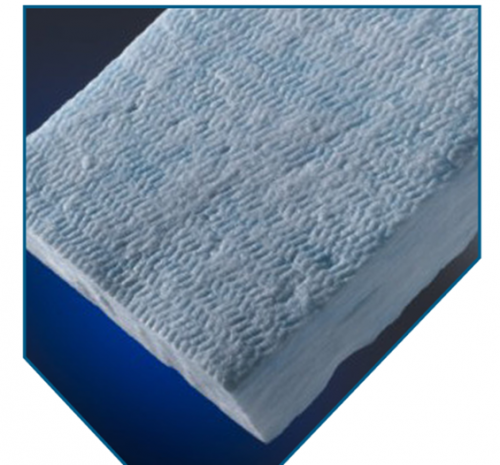

Cryrogenic Blanket

Glass fiber blanket made of high-quality fibers bound with a melamine resin, is specially-engineered to meet the complex insulation needs of cryogenic vessel manufacturers. With a broad operating temperature range, this blanket is suitable for insulating stationary, mobil  cryogenic tanks and rail cars. We offer thermal protection along with:

• Excellent stability - Does not settle or compact in use

• Low thermal conductivity - Virtually no outgassing in typical cryogenic environment

• Low density - Light weight - Easy installation and handling - easily cuttable and allows for hand assembly around the tank support area

Material Operating Temperature,  (°C)  : from -268° C to 232° C

Thickness, mm :    25

Density, kg/m3 : 16

Standard Roll - Width, mm : 1828.8

Standard Roll - Length, m : 15.2

Weight - Net, kg : 11.4

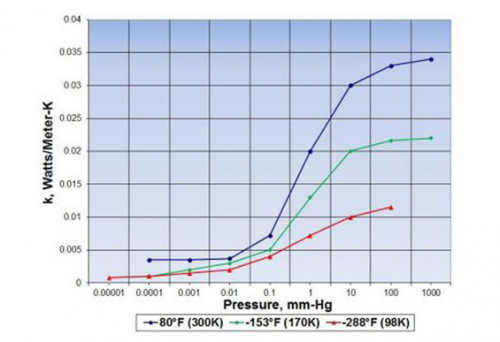

Thermal Conductivity Chart
