Loading Unloading Valves

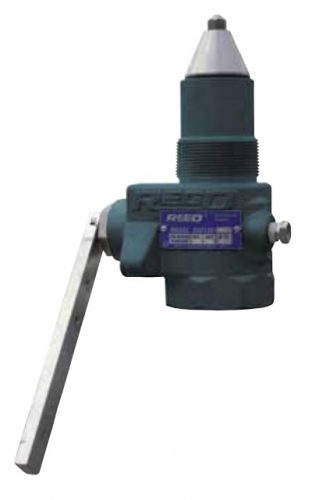

Internal Valve’s Body is Ductile Iron and stem is stainless steel. Temperature range of -40°C to +73°C. and MAWP: 27 Bar.. Closing flow capacity can be arrange between 160-510 GPM.

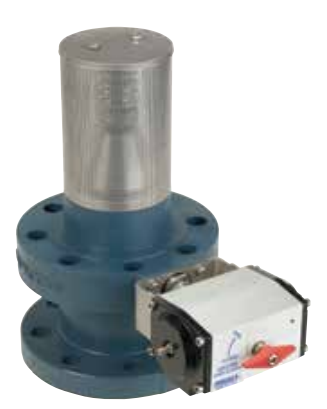

Designed for filling and/or withdrawal transports and stationary storage tanks with flanged & threaded connection type to use in pumps and piping. Installation is quick and easy, and the valve may be operated manually by cable or pneumatically. Lever available on right or left side to allow for installation. Valve is already built-in excess flow valve.

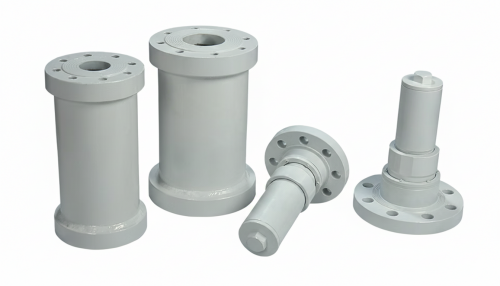

Hydraulic Valves are used as Remotly Controlled Safety Valves at the storage and transport tanks at liquid-gas inlet-outlet. Connection type EN or ASME flanges. Operating Pressure Max. 25 Bar Nominal Diameter DN 50 (2”) – DN 80 (3”) – DN 100 (4”)

Hydraulic Hand Pump’s body material is Cast Aluminum. MAWP is 300 bar and capacity is 1-10 liter.
