Magnetic Level Gauge

Magnetic Level Gauge

LP Gas and NH3 service liquid-level gauges are designed to accurately determine the percentage of total tank volume for most liquids in stationary-storage-transport applications.The large, easy-to-read dials are also easy to remove and replace. Materials of construction vary depending on the types of liquids to be gauges. Many different optional features are available to meet your specific needs. Liquid gauges are designed for working pressures ranging from atmospheric to 450 [31 Bar] psig and temperature between -40 °C +50 °C. Dial diameter is available from 4” and 8”.

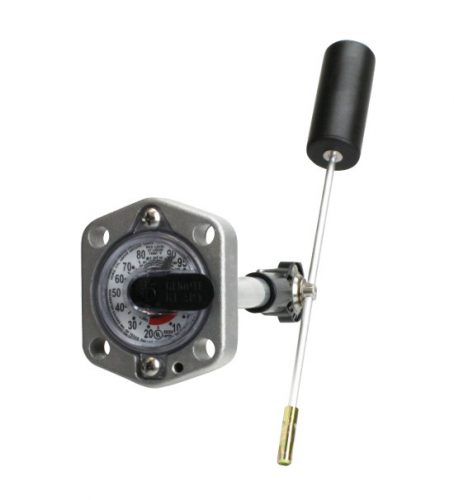

Top-mount versions are used especially in underground tanks.

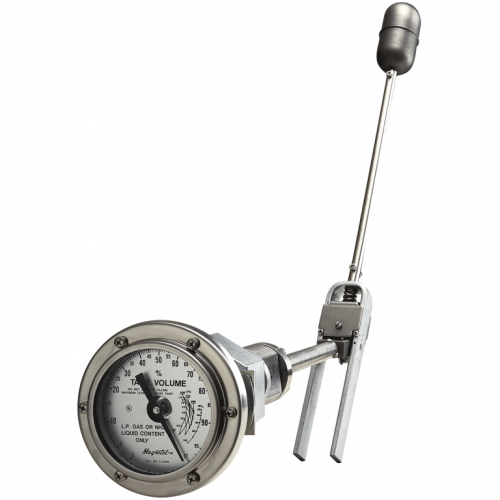

Side-mount versions are designed for above-ground and mobile tanks.

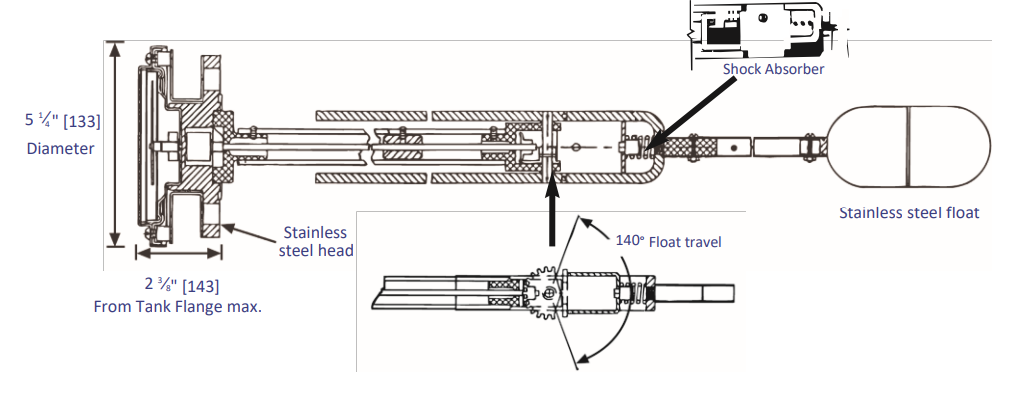

Magnetic level indicators used in mobile tanks also have shock-absorber.

When placing an order, please specify:
Tank diameter
Tank type (Underground, above-ground, mobile)
Side or top mounting option
Dial diameter
Type of liquid or gas for which the level indicator will be used
Height (H) (The distance between the top surface of the nozzle on which the level indicator will be mounted and the tank surface)
