Purge and Pressure Gauge Valves

Coming Soon..

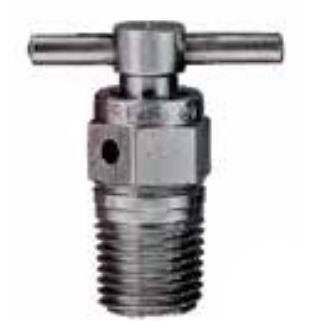

Especially designed to bleed off liquid or vapor pressures trapped in transfer lines. Valves used at the end of a liquid transfer hose, the bleeder valve allows for the controlled venting of the product and indicates to the operator that the valves are closed and he can disconnect the coupling.

They may also be used as a fixed liquid level gauge where the dip tube is part of the tank. Body is Brass or Stainless Steel and connection ¼” M. NPT threaded type. Temperature range of -40°C to +73°C and MAWP: 27 Bar..

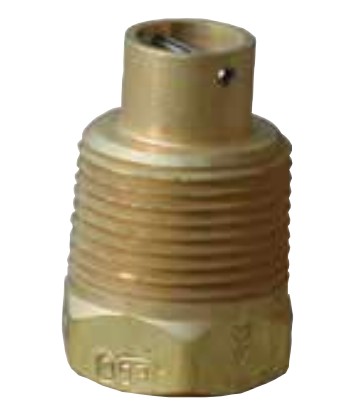

Excess flow valve for pressure gauge i designed for tank use in pressure gauge installations to minimize excess gas discharge in the event the pressure gauge is sheared. A suitable shut-off valve should be installed between this valve and the pressure gauge to allow convenient gauge replacement. Body is Brass and inlet connection 3/4” M. NPT & outlet connection ¼” F. NPT threaded type. Temperature range of -40°C to +73°C and MAWP: 27 Bar
