Safety Relief Valve

Coming Soon..

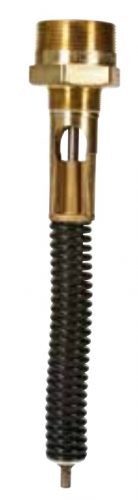

SRV for above 30m³ capacity storage tanks. Body is Brass and connection Ø2”MNPT threaded type. Set pressure 250PSI (17.2bar). Discharge capacity is 10,422SCFM.

SRV up to 30m³ capacity storage tanks. Body is Brass and connection Ø2”M. NPTF threaded type. Set pressure 250PSI (17.2bar). Discharge capacity is 6,341SCFM.

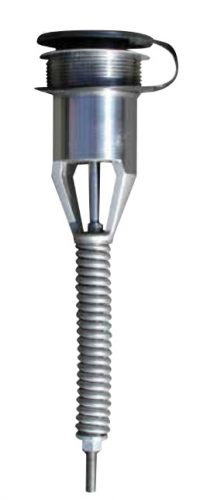

SRV for transport tanks. Body, Spring and Stem are Stainless Steel and connection is 3” M. NPTF threaded type. Set pressure 250PSI (17.2bar). Discharge capacity is 9,598CFM.

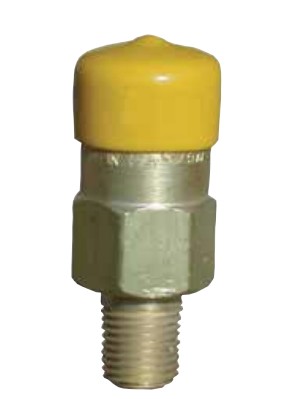

SRV designed especially for the protection of piping and shut-off valves where there is a possibility of trapping liquid LPG or anhydrous ammonia. . Body is brass and , Spring is Stainless Steel and connection is ¼” and ½” M. NPTF threaded type. Set pressure can be arrange up to 450PSI (31bar).

SRV for above 70m³ capacity storage tanks. Connection is 3” and 4” ANSI flanged type. Set pressure 250PSI (17.2bar). You can contact with us fort he other types of SRV like duoport etc.
